Reactor parameters table
|
Name |
Capacity |
Specification (Diameter mm *High mm) |
Rotating speed (Rev / min) |
Power (KW) |
Material |
Heating method |
|

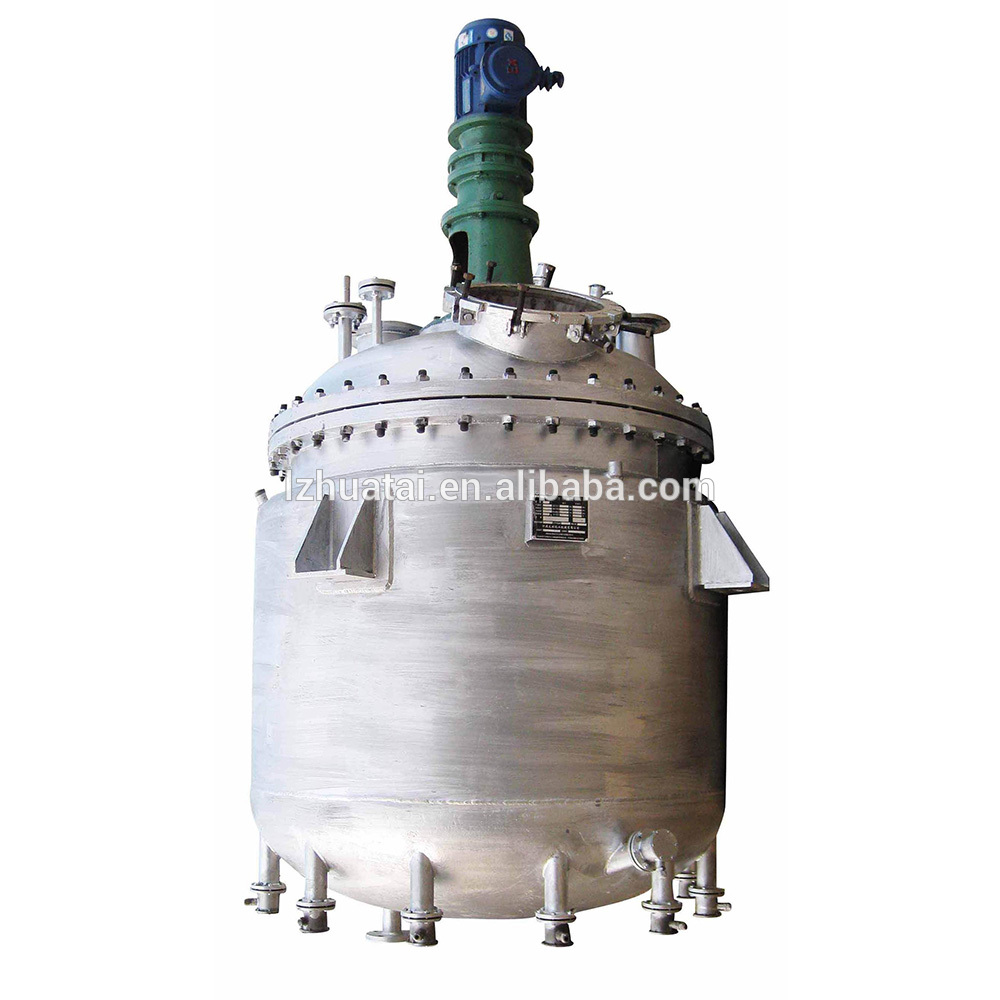

Reactor |
1000L |
φ1000*1400 |
60-120 |
11 |
stainless steel 201/304 |
Heating method |
|
1500L |
φ1200*1500 |
15 | ||||
|
2000L |
φ1300*1700 |
18.5 | ||||
|
2500L |
φ1400*1800 |
22 | ||||
|
3000L |
φ1500*1900 |
37 | ||||
|
3500L |
φ1700*1700 |
45 | ||||
|
4000L |
φ1800*1800 |
55 | ||||
|
5000L |
φ2000*1800 |
75 |
Application:
1). Resin:
Alkyd resin, Epoxy resin, Phenolic resin, Acrylic resin, Unsaturated polyster resin, Polymer resin.....
2). Glue/ Adhesive:
Hot melt glue /Adhesive, White glue, Silicon glue, PVC glue, PVA, PU glue....
3). Others:
Paint, Pigment, Latex, White emulsion and liquid glue and adhesive.
1.Material:
a) All contact part and cover: SUS 304 or SUS 316 polished ;
b) Jacket: SS304 or carton steel
2.Heating way:
1) Electric heating,
2) Thermal oil heating,
3) steam heating or Zero distance heating optional.
3. Structure type:
1) External coil heating reactor,
2) Internal coil heating reactor,
3) Jacketed heating reactor.
Laizhou Huatai Insulation Materials Co., Ltd. mainly produces SMC and DMC products and also
specialized in equipment research and development. We can meet the needs of different manufacturers.
Our company provides quality products and technical services and develops new products together
with customers to enhance our competitiveness.
We believe that our company will become the best partner of your career. If you have an inquiry, please
contact us. We sincerely hope to cooperate with you and achieve win-win result.
Why Choose Us ?
1.Strong Technical support: senior engineer can offer you the best technical support .
2. Customization Production: size, model, package can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our products for customers.
Q1: Are you a factory or trading company?
A1: We are a factory .
Q2:What’s the delivery time?
A2:It will take about 30 days to finish an order,but the exact time is according to actual situation.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end.
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing
part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer
need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
